Indoor Fiber Optic Wire 8 Cores Singlemode Loose Tube Distribution

Name: Indoor Fiber Optic Wire 8 Cores Singlemode Loose Tube Distribution
Brand: OTOP / OEM Accepted
Price: 1 USD

China Indoor Fiber Optic Wire 8 Cores Singlemode Loose Tube Distribution wholesale

Brand Name : OTOP / OEM Accepted

Model Number : 8 Cores

Certification : RoHS, UL, CE, ISO9001, VDE, CCC

Place of Origin : China

MOQ : 1 KM

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000000 km per month

Delivery Time : 10 working days

Packaging Details : Standard

Type : Single-Mode

Fiber type : G657A, G652D

Color : Yellow

Fiber count : 2/4/6/8/12 Core

Material : Available upon customer's request

Use : Optical Jumper or Pigtail

Contact Now

Indoor Fiber Optic Wire 8 Cores Singlemode Loose Tube Distribution

♦ 8 Cores Distribution Loose Tube Optical Cable

- Indoor distribution
- Pigtail of communication equipment
- Communication equipment
- Floor connection

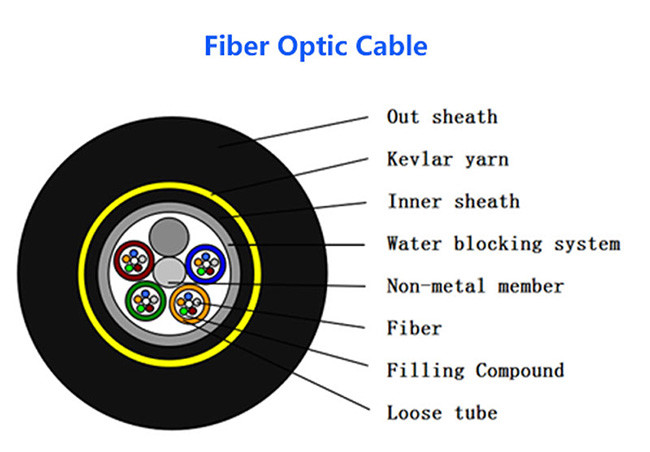

♦ Characteristics

- Hight strength Kevlar yarn member
- More tight buffered design
- Round construction
- Easy to strip

Excellet mechanical and environmental performance. Stainless steel or gaivanized steel self-supporting. Excellent mechanical and temperature performance.
Critical protection to fibers.
The following measures are taken to ensure the water blocking performance of the cable:
-Single steel wire used as the central strength member
Special water-blocking filling compound in the loose tube
100% cable core filling.

♦ Specifications

Cable Count	Out sheath Diameter	Fiber Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(UM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
2	2.0	250	4.25	300	150	300	150	20D	10D	-40+60
4	2.0	250	4.25	300	150	300	150	20D	10D	-40+60
6	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
8	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
12	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
24	3.0	250	8	300	150	300	150	20D	10D	-40+60

♦ Applications:

Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Access building, FTTx.
